[Show and Tell] IPBan Control Center — Open-Source Windows GUI, Tray Monitor & Live Attack Analytics

[MeXaHiK-7]

Hi everyone! 👋

First of all, huge thanks to @DigitalRuby (Jeff Johnson) and all contributors for creating and maintaining IPBan — it is an indispensable tool for Windows Server security.

To make managing and monitoring IPBan even easier for sysadmins and DevOps, I developed an open-source graphical management suite: IPBan Control Center.

🔗 GitHub Repository: https://github.com/MeXaHiK-7/IPBanGUI
📦 Latest Release (Standalone .exe / Installer): https://github.com/MeXaHiK-7/IPBanGUI/releases/latest

---

🌟 Key Features:

• 🛡️ Windows Service & Tray Management:

  • Color-coded system tray icon: 🟢 Protected/Running, 🔴 Stopped, 🟠 Alert with exclamation mark.
  • Native Windows toast/balloon notifications whenever a brute-force IP is banned.
  • 1-click Start / Stop / Restart / Service installation directly from GitHub.

• 📊 Real-Time Attack Analytics & KPI Dashboard:

  • Instant KPI cards: Total locally blocked IPs, unique attacking countries, top attack country share, and peak attack hours.
  • Top Attacking Countries Leaderboard with flags and visual unicode activity bars.
  • 24-Hour Attack Distribution histogram combining IPBan ban timestamps and Windows Security Audit (Event ID 4625).
  • Clean isolation: Analytics strictly measure direct local threats to your server.

• 🌍 GeoIP Country Detection & Emoji Flags:

  • Asynchronous country lookup with local disk caching (geoip_cache.json) — smooth UI with zero lag.
  • Automatic detection of internal LAN ranges (🏠 LAN).

• ☁️ AbuseIPDB Threat Intelligence Integration:

  • Pull the top 1,000–10,000 verified malicious IPs with custom confidence thresholds (90–100%).
  • Kept isolated in a dedicated Blacklist filter so local bans remain clean.
  • Optional auto-reporting of local attacks back to AbuseIPDB.

• 🔍 12-Protocol Windows Monitoring:

  • Visual toggles and status badges for RDP (3389), OpenSSH (22), MS-SQL (1433), MySQL (3306), FTP, Web/HTTP, Mail (SMTP, IMAP, POP3), MS VPN RRAS, RD Web Access, and VNC.

• 🚫 Banned IP & Firewall Rules Inspector:

  • Fast filtering (Local Bans / Whitelist / Cloud Blacklist / All).
  • 1-click Whois lookup via ipinfo.io.
  • Instant unbanning via unban.txt synchronization.
  • Self-lockout protection: buttons to automatically detect and whitelist local adapter and public WAN IPs.

• 💾 Persistent Settings Engine:

  • Machine-wide configuration (C:\ProgramData\IPBanControlCenter\settings.json) that safely preserves your API keys, protocol selections, and preferences across reboots and version upgrades.

• 📦 Zero Dependencies:

  • Fully self-contained portable executable (IPBanControlCenter.exe) and wizard installer (Setup_IPBanGUI.exe).
  • Available in English and Ukrainian with automatic OS locale detection.

---

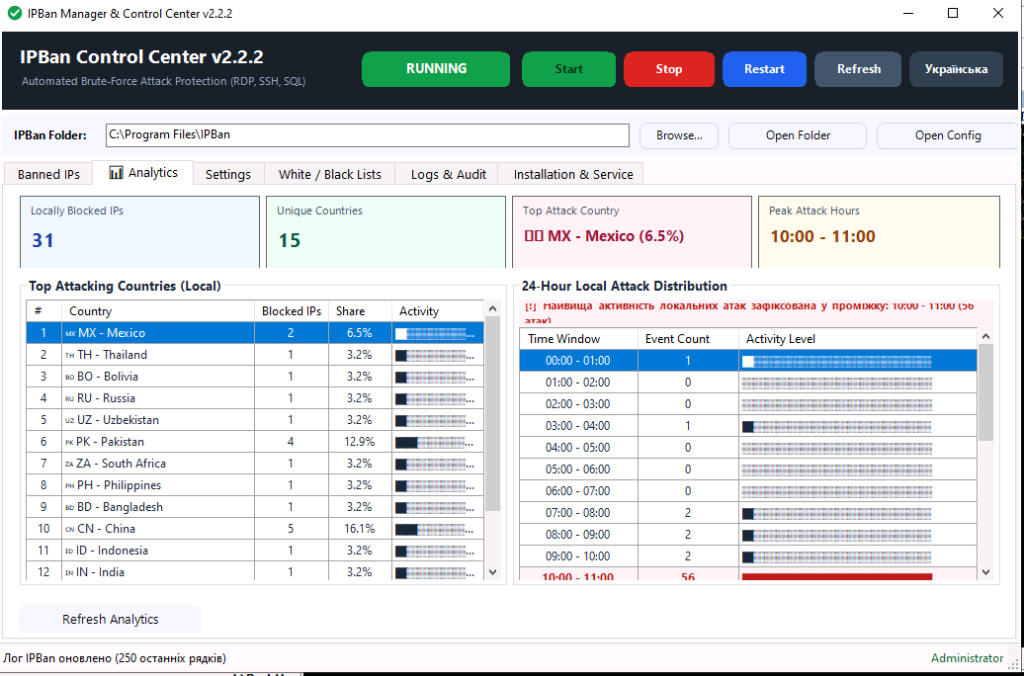

📸 Preview:

---

Feedback, suggestions, and feature requests are very welcome!
If you find it helpful, feel free to give the repo a ⭐: https://github.com/MeXaHiK-7/IPBanGUI

[jjxtra]

Slava Ukraini

[MeXaHiK-7]

Героям Слава! Glory to the heroes!
